Biomass Briquette Press


We offer you Biomass Briquetting,Biomass Briquetting Machine
Biomass Briquette Screw Press


Working principle:
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The self bonding of biomass to form a briquette involves the thermo-plastic flow of the biomass. The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding,compressing the biomss to form into high density briquettes.
During this process, no binder need to be used. So the ouput briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 1100~1300kg/m.

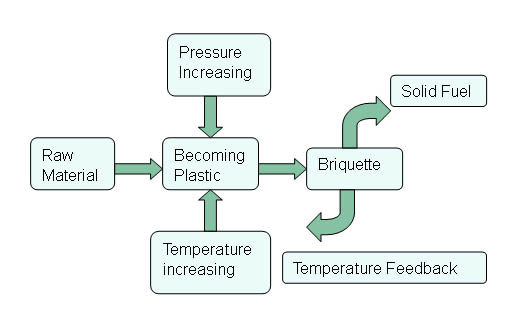

Flow chart of the Biomass Briquetting Process:
Biomass Briqutting Machine

Biomass Machine
Biomass Briqutting Machine
Briquette Machine Model ZBJI(11kw motor)
Briquette Machine Model ZBJII (15kw motor)
Biomass Briqutting Machine
Biomass Briqutting Machine
Briquette Machine Model ZBJIII (18.5kw motor)
Wood Briquettes made from Briquetting Screw Press


Biomass Briquetting Screw Press

Model ZBJI ZBJII ZBJIII
Output kg/h 80-120 120-150 180-230
Motor Power (kw) 11kw(energy saving type with gear box) 15kw(without gear box) 18.5kw
Electric heater (kw) 1.5kw*3pcs 1.5kw*3pcs 2kw*3pcs
Weight(kg) 650kg 650kg 900kg
Overall dimension(mm) 1780*750*1290 1650*600*1260 1860*800*1360mm
Size of finished products Diameter:
30,40, 50mm
 Diameter:
30,40,50mm
 Diameter:
60,70,80,90,100mm
